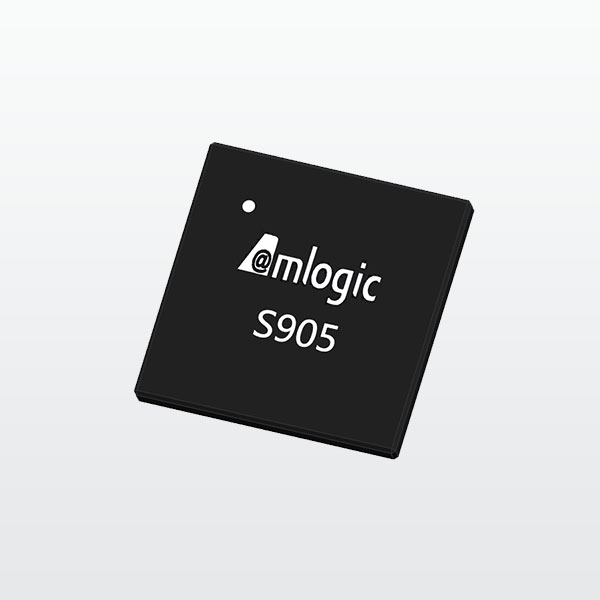

S905

S905 is an quad-core ARM Cortex-A53 advanced application processor designed for OTT/IP Set Top Box(STB), smart projector and high-end media box applications.
型号:S905
品牌:AMLOGIC
封装:LFBGA334
批号:15+
库存:1600

规格书(Datesheet):S905.PDF 点击下载

商品信息

 S905 is an quad-core ARM Cortex-A53 advanced application processor designed for OTT/IP Set Top Box(STB), smart projector and high-end media box applications. It integrates a powerful CPU/GPU subsystem, and a secured UHD video CODEC engine with all major peripherals to form the ultimate low power multimedia AP.  (点击即可咨询芯片详细信息

 S905’s Features

1CPU Sub-system

  - Quad core ARM Cortex-A53 CPU up to 2.0GHz (DVFS)

  - ARMv8-A architecture with Neon and Crypto extensions

  - 8-stage in-order full dual issue pipeline

 - 32KB instruction cache and 32KB data cache

  - 512KB Unified L2 cache

  - Advanced TrustZone security system

 -  Application based traffic optimization using internal QoS-based switching fabrics



23D Graphics Processing Unit

 -  Penta-core ARM Mali-450 GPU up to 750MHz+ (DVFS)

  - Dual Geometry Processors with 32KB L2 cache

  - Triple Pixel Processors with 128KB L2 caches

  - Concurrent multi-core processing

  - 2250Mpix/sec and 165Mtri/sec

 -  Full scene over-sampled 4X anti-aliasing engine with no additional bandwidth usage

 -  OpenGL ES 1.1/2.0 and OpenVG 1.1 support



32.5D Graphics Processor

  - Fast bitblt engine with dual inputs and single output

  - Programmable raster operations (ROP)

 - Programmable polyphase scaling filter





 -  Supports multiple video formats 4:2:0, 4:2:2 and 4:4:4 and multiple pixel formats (8/16/24/32 bits graphics layer)

 -  Fast color space conversion

 -  Advanced anti-flickering filter



4Crypto Engine

  - AES block cipher with 128/192/256 bits keys, standard 16 bytes block size and streaming ECB, CBC and CTR modes

 -  DES/TDES block cipher with ECB and CBC modes supporting 64 bits key for DES and 192 bits key for 3DES

  - Hardware key-ladder operation and DVB-CSA for transport stream encryption

  - Built-in hardware True Random Number Generator (TRNG), CRC and SHA-1/SHA-2 engine



5Video/Picture CODEC

 - Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders

 - Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding

 - Video/Picture Decoding

  - Video/Picture Encoding

  - Motion adaptive 3D noise reduction filter

  - Advanced motion adaptive edge enhancing de-interlacing engine

  - 3:2 pull-down support

  - Programmable poly-phase scalar for both horizontal and vertical dimension for zoom and windowing

  - Programmable color management filter (to enhance blue, green, red, face and other colors)

  - Dynamic Non-Linear Luma filter

 - Deblocking fliters

  - Programmable color matrix pipeline

 -  Video mixer: 2 video planes and 2 graphics planes per video output



6Video Output

 -  Built-in HDMI 2.0 transmitter including both controller and PHY with CEC and HDCP 2,2, 4Kx2K@60 max resolution output

  - CVBS 480i/576i standard definition output

 - Supports all standard SD/HD/FHD video output formats: 480i/p, 576i/p, 720p, 1080i/p and 4Kx2K



7Camera Interface

  - Two ITU 601/656 parallel video input with down-scalar

  - Supports camera input as YUV422, RGB565,16bit RGB or JPEG



8Audio Decoder and Input/Output

  - Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing

 - I2S audio interface supporting 8-channel (7.1) input and output

  - Built-in serial digital audio SPDIF/IEC958 output and PCM input/output

  - Dual-channel digital microphone PDM input

  - Supports concurrent dual audio stereo channel output with combination of I2S+PCM



9Memory and Storage Interface

  - 16/32-bit SDRAM memory interface running up to DDR2133

  - Supports up to 2GB DDR3, DDR3L, LPDDR2, LPDDR3 with dual ranks

 -  Supports SLC/MLC/TLC NAND Flash with 60-bit ECC, compatible to Toshiba toggle mode in addition to ONFI 2.2

  - SDSC/SDHC/SDXC card and SDIO interface with 1-bit and 4-bit data bus width supporting spec version 2.x/3.x/4.x DS/HS modes up to UHS-I SDR104

  - eMMC and MMC card interface with 1/4/8-bit data bus width fully supporting spec version 5.0 HS400

 - Supports serial 1, 2 or 4-bit NOR Flash via SPI interface

 - Built-in 4k bits One-Time-Programming memory for key storage



10Network

  - Integrated IEEE 802.3 10/100/1000 Gigabit Ethernet controller with RMII/RGMII interface

  - Supports Energy Efficiency Ethernet (EEE) mode

  - Optional 50MHz and 125MHz clock output to Ethernet PHY

  - WiFi/IEEE802.11 & Bluetooth supporting via SDIO/USB/UART/PCM

  - Network interface optimized for mixed WIFI and BT traffic



11Digital Television Interface

 -  Transport stream (TS) input interface with built-in demux processor for connecting to external digital TV tuner/demodulator

  - Built-in PWM, I2C and SPI interfaces to control tuner and demodulator

  - Integrated ISO 7816 smart card controller



12Integrated I/O Controllers and Interfaces

  - Dual USB 2.0 high-speed USB I/O, one USB Host and one USB OTG

 - Multiple UART, I2C and SPI interface with slave select

 - Multiple PWMs

  - Programmable IR remote input/output controllers

  - Built-in 10bit SAR ADC with 2 input channels

 -  A set of General Purpose IOs with built-in pull up and pull down



13System, Peripherals and Misc. Interfaces

 - Integrated general purpose timers, counters, DMA controllers

 - 24 MHz crystal input and internal 32KHz oscillator

  - Embedded debug interface using ICE/JTAG



14Power Management





 -  Multiple external power domains controlled by PMIC

  - Multiple internal power domains controlled by software

  - Multiple sleep modes for CPU, system, DRAM, etc.

  - Multiple internal PLLs for DVFS operation

 -  Multi-voltage I/O design for 1.8V and 3.3V

  - Power management auxiliary processor in a dedicated always-on (AO) power domain that can communicate with an external PMIC



15Security

  - Trustzone based Trusted Execution Environment (TEE)

 -  Secured boot, encrypted OTP, internal control buses and storage

  - Protected memory regions and electric fence data partition

  - Hardware based Trusted Video Path (TVP) and secured contents (needs SecureOS software)



16Package

  - LFBGA,13x13mm, 19x19 ball matrix, 0.65 ball pitch, RoHS compliant



S905’s Block Diagram





 S905's Block Diagram





S905’s Package

S905's PackageS905's Package
