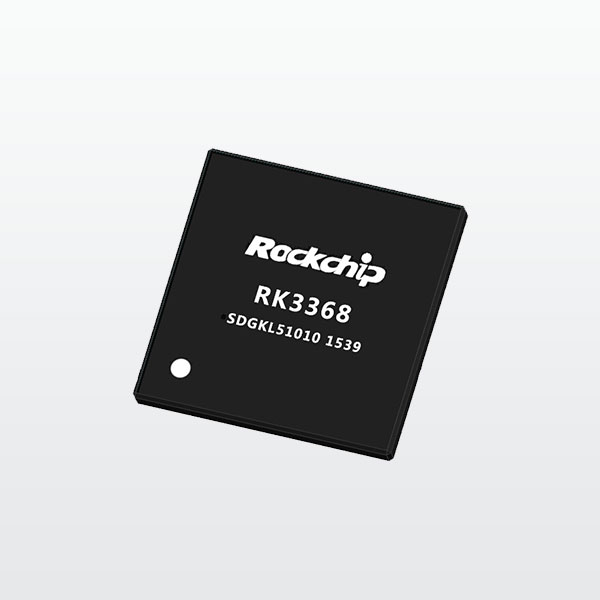

RK3368

RK3368 is a low power, high performance octal-core Cortex-A53 processor for mobile phones
型号:RK3368
品牌:ROCKCHIP
封装:TFBGA453
批号:15+
库存:700

规格书(Datesheet):RK3368.PDF 点击下载

商品信息

          RK3368 is a low power, high performance processor for mobile phones, personal mobile internet device and other digital multimedia applications, and integrates octal-core Cortex-A53 with separately NEON coprocessor. (点击即可咨询芯片详细信息

RK3368’s Features
1、 MicroProcessor
- Octal-core ARM Cortex-A53 MPCore processor, a high-performance,
low-power and cached application processor
- Two CPU clusters, with four CPU core for each cluster, One cluster is
optimized for high-performance(big cluster) and the other is optimized for
low power(little cluster)
- Full implementation of the ARM architecture v8-A instruction set, ARM Neon
Advanced SIMD (single instruction, multiple data) support for accelerated
media and signal processing computation
- ARMv8 Cryptography Extensions
- In-order pipeline with symmetric dual-issue of most instructions.
- Harvard Level 1 (L1) memory system with a Memory Management Unit
(MMU).
- Level 2 (L2) memory system providing cluster memory coherency, including
an L2 cache.
- Include VFP v3 hardware to support single and double-precision add,
subtract, divide, multiply and accumulate, and square root operations
- SCU ensures memory coherency between the four CPUs
- CCI400 ensures the memory coherency between the two clusters
- Integrated 32KB L1 instruction cache , 32KB L1 data cache with 4-way set
associative
- 512MB unified L2 Cache for big cluster, 256KB unified L2 Cache for little
cluster
- Trustzone technology support
- Full coresight debug solution
- Ten separate power domains for every core to support internal power switch
and externally turn on/off based on different application scenario
- One isolated voltage domain to support DVFS
- Maximum frequency can be up to 900MHz@0.9V for Cortex-A53 big cluster
- Maximum frequency can be up to 750MHz@0.9V for Cortex-A52 little
cluster
2、 Memory Organization
- Internal on-chip memory
- External off-chip memory①
3、Internal Memory
- Internal BootRom
- Internal SRAM
4、External Memory or Storage device
- Dynamic Memory Interface (DDR3/DDR3L/LPDDR2/LPDDR3)
- Nand Flash Interface
- eMMC Interface
- SD/MMC Interface
5、System Component
- CRU (clock & reset unit)
- PMU(power management unit)
- Timer
- PWM
- WatchDog
- Bus Architecture
- Interrupt Controller
- DMAC
- Security system
6、 Video CODEC
- Shared internal memory and bus interface for video decoder and encoder②
- Embedded memory management unit(MMU)
- Video Decoder
- Video Encoder
7、 HEVC Decoder
- Main/Main10 HEVC/H.265 decoder
- 4k@60FPS (core clock@300Mhz)
- Support up to 4096x2304 resolution
- Support up to 100Mbps bit rate
- Embedded memory management unit(MMU)
- Stream error detector (28 IDs)
- Internal 128k cache for bandwidth reduction
- Multi-clock domains and auto clock-gating design for power saving
8、 JPEG CODEC
- JPEG decoder
- JPEG encoder
9、 Image Enhancement
- Image pre-processor
- Video stabilization
- Image Post-Processor (embedded inside video decoder)
10、 Graphics Engine
- 3D Graphics Engine :
- Base handheld architecture fully Microsoft® DirectX™ 9.3, OpenGL®
3.1, and OpenGL ES 3 compliant
- Support for pull-model attribute evaluation
- Tile-based deferred rendering architecture with concurrent processing
of multiple tiles
- Multi-threaded Unified Shading Cluster (USC) engine
11、Video IN/OUT
- Camera Interface(interface only)
- Camera Interface and Image Processer(Interface and Image Processing)
- Display Interface
12、HDMI
- Single Physical Layer PHY with support for HDMI 1.4 and 2.0 operation
- Support HDCP 1.4
- Support HDCP 2.2
13、MIPI_DSI/LVDS/TTL combo PHY
- MIPI_TX
- LVDS
- TTL
14、MIPI_CSI PHY
- Embedded one MIPI_CSI PHY
- Support 4 data lane, providing up to 4Gbps data rate
15、eDP PHY
- Support 4Kx2K @ 30fps
- Compliant with eDP TM Specification, version 1.1
- Up to 4 physical lanes of 2.7/1.62 Gbps/lane(HBR2/HBR/RBR)
- RGB, YCbCr 4:4:4, YCbCr 4:2:2 and 8/10/12 bit per component video format
- Encoded bit stream (Dolby Digital, or DTS) – IEC61937 compliant
- Support VESA DMT and CVT timing standards
- Fully support EIA/CEA-861D video timing and Info Frame structure
- Hot plug and unplug detection and link status monitor
- Support DDC/CI and MCCS command transmission when the monitor
includes a display controller.
- Supports Panel Self Refresh(PSR)
16、 Audio Interface
- I2S/PCM with 8ch
- I2S/PCM with 2ch
- SPDIF
17、 Connectivity
- SDIO interface
- High-speed ADC stream interface
- TS interface
- Smart Card
- GMAC 10/100/1000M Ethernet Controller
- SPI Controller
- Uart Controller
- I2C controller
- GPIO
- USB Host2.0
- USB OTG2.0
- HSIC Interface
18、 Others
- Temperature Sensor(TS-ADC)
- SAR-ADC(Successive Approximation Register)
- eFuse
- Operation Temperature Range:-40C to +85C
- Operation Voltage Range:Core supply: 1.0V (±10%) IO supply : 3.3V or 2.5V or 1.8V (±10%)
- Process :GlobalFoundry 28nmSLP
- Package Type
                  TFBGA453LD(body: 19mm x 19mm; ball size: 0.4mm; ball pitch:0.8mm)

RK3368’s Block Diagram
 RK3368's Block Diagram
RK3368’s Package

 RK3368's PackageRK3368's Package
