TR4P153BT是台湾硕呈科技公司（Tritan Technology）推出的一款高性能4位通用MCU,该MCU内置有2K×12bits OTP（一次性可编程存储器），256×4bits SRAM（静态随机存储器），8bit PWM，11个输入/输出端口。其主要应用于计算器、车用仪表、车用防盗装置、呼叫器、无线电话、CD播放器、LCD驱动控制器、LCD游戏机等中。QQ:1762516767 18675554078，原装现货，欢迎交流。（更多详情）
TR4P153BT的采购信息如下：
TR4P153BT的主要功能特性包括：
1、Operating voltage: (1) 2.0V to 5.5V for Temp. = 25℃ (2) 2.2V to 5.5V for Temp. = -40℃~+85℃
2、 These MCU can operate in high speed. Oscillator type can be selected by option setting. High speed and low speed operating mode is selectable by software. Below is the chip performance in different modes.

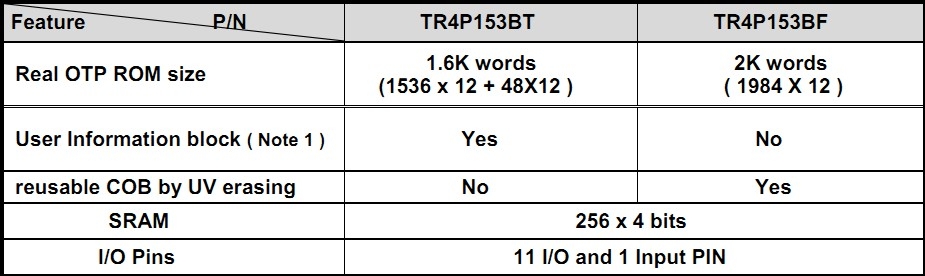

3、Memory Size ：Program ROM size : 2KX12 bits (OTP type)；SRAM size: total 256x4 bits SRAM
4、Wake up function for power-down mode

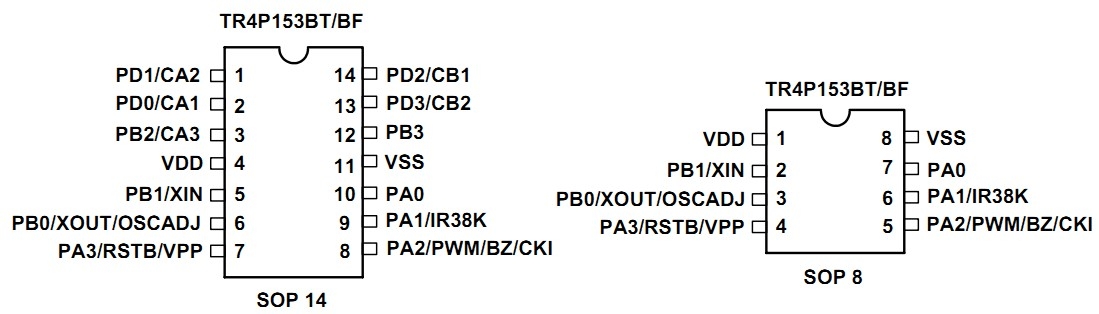

5、11 input /output ports: PA0~PA2, PB0~PB3, PD0~PD3. Each I/O can be bit programmable as input or output port. These 11 I/Os also provided level-change-wakeup function. Pull up and pull down resistor setting is available by software.
6、 1 input port PA3, PA3 is shared with RSTB (reset) pin by option. It also provides level-change-wakeup function. Pull up and pull down resistor can be configured by software too.
7、Port A, Port B and Port D are provided with high sink current 24mA @VDD=5V,Vol=0.5V( except PA3 )
8、Port A, Port B and Port D are provided with high drive current 23mA @VDD=5V,Voh=4.5V( except PA3 )
9、 PA1 built-in 38KHz modulator by option.
10、 One Op-Amp is provided, three pins shared with PD0, PD1, PB2 (by option).
11、One comparator is provided, two input pins shared with PD2, PD3 (by option).
12、Three timers
13、Four reset condition
14、 Three internal interrupt sources: TIMER1, TIMER2 or RTC interrupt.
15、WDT(Watch dog timer)
16、Provides 8 Bits PWM, PWM signal output is shared with PA2 pin by option.
17、 Built-in external X’tal oscillator ( EXTOSC, use 1MHz~16MHz external ceramic resonator or crystal oscillator ). These two crystal pins are shared with PB1 and PB0 by option.
18、 Built-in high frequency internal 32MHz RC oscillator ( HRCOSC, frequency deviation within ±2 %, temperature range at -40℃~+85℃, Vdd = 2.0V to 5.5V )
19、Built-in low frequency internal RC OSC (LRCOSC) 459KHz ( frequency deviation within ±12%

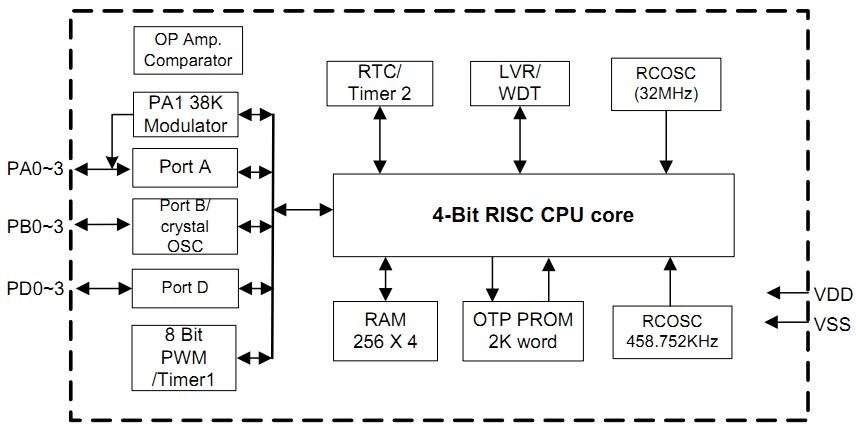

TR4P153BT的功能框图如下：
