LIS3DH

        LIS3DH是意法(ST)半导体公司推出的一款MEMS运动传感器:低功耗、高性能、三轴数字输出加速计。在±2g/±4g/±8g/±16g全量程范围内,LIS3DH可提供非常精确的测量数据输出,其可编程的FIFO(先入先出)存储器模块和两个可编程中断信号输出引脚,可立即向主处理器通知动作检测、单击/双击事件等其它状况。主要应用于:自由落体检测、单双击识别、手持设备的智能省电、步数计、游戏和虚拟现实输入设备、冲击识别与记录、振动监测与补偿等。

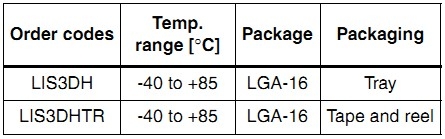

LIS3DH的采购信息如下:


LIS3DH的主要功能特性包括:

1Wide supply voltage, 1.71 V to 3.6 V

2Independent IOs supply (1.8 V) and supply voltage compatible

3Ultra low-power mode consumption down to 2 µA

4、±2g/±4g/±8g/±16g dynamically selectable full-scale

5I2C/SPI digital output interface

616 bit data output

72 independent programmable interrupt generators for free-fall and motion detection

86D/4D orientation detection

9Free-fall detection

10Motion detection

11Embedded temperature sensor

12Embedded self-test

13Embedded 96 levels of 16 bit data output FIFO

1410000 g high shock survivability

15ECOPACK® RoHS and Green compliant

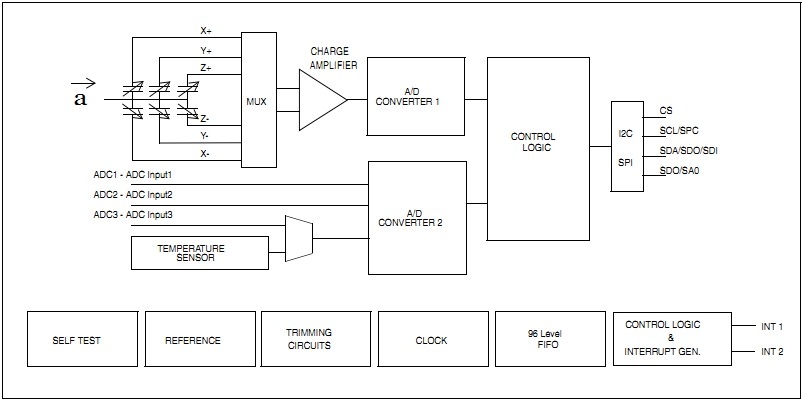

LIS3DH的功能框图如下:


LIS3DH的管脚图如下:
